Rotational Speed Sensor rols-5pw

The Rotational Speed Sensor rols-5pw is specifically designed for industrial measurement tasks. Rotation speed sensors are used to monitor, regulate and control mechanical drive systems and play a major role when it comes to protecting elements of a rotational system (e.g., in the engine, drive).

Product Features

● Visible red laser (Class II) source

● Blue LED on-target indicator

● Measure speeds from 1-300,000 RPM

● Measure range up to 2 m and 45 degree

● No need to perform any adjustment

● Very easy to aiming the targer

● Insulated L-board to avoid the interference

Technical Data

Speed Range: 1 - 300,000 RPM

Illumination: Visible Red Laser (Class Il)

On-Target Indicator: Blue LED on wire end cap

Power Requirement: 5.0 Vdc @ 30mA

Output Signal: Positive pulse input voltage (0 to V+)

Operating Range: Up to 2m and 45 degree offset from target

Operating Temp: -10~+40°C

Cable Length: 2.4m

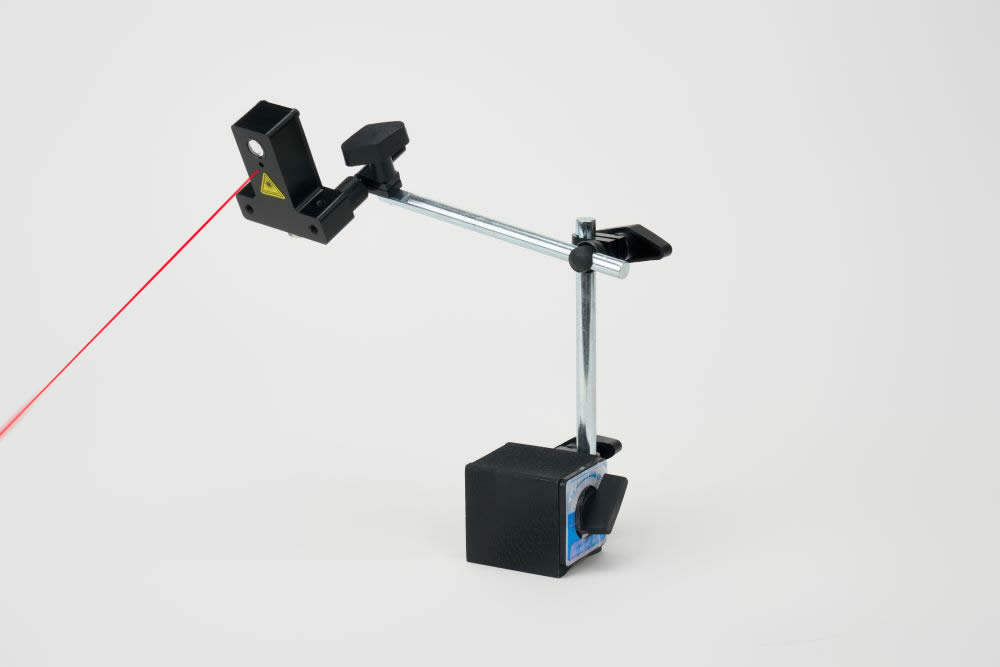

Optical Sensor for Dynamic Balancing – Laser Tachometer

Our Laser Tachometers contains an integrated voltage regulator, amplifier and anti-aliasing filter encased in highlyresistant nylamid material. Its laser beam allows high precision RPM measurement of rotating components with an effective sensor range.

Digital Output

Operation Distance up to 5m

IP60 protection grade

Weight: 38g

Cable for Optical Sensor for Dynamic Balancing – Tachometer Cable

We offer OEM services for rotational speed sensors. Please contact us for details.
