UV Bench Lamp XX-Series
Laboratory UV Bench Lamp XX-Series
The XEPU Laboratory UV Bench Lamp XX-Series offers different watts, sizes, and UV wavelengths (longwave 365nm, shortwave 254nm or midrange 302nm). The XX-Series UV Bench Lamps are ideally suited for applications where high-intensity, wide-area UV coverage is required.
Applications
The XX-Series UV Bench Lamps are ideally suited for applications where high-intensity, wide-area UV coverage is required.
● Shortwave: sanitation inspection in laboratories, pharmaceutical companies and clinic
● Midrange and longwave: fluorescence analysis, research and testing applications
Product Features
● The XEPU Laboratory UV Bench Lamps are available in different watts, sizes, and UV wavelengths.
● The XEPU Laboratory UV Bench Lamp is equipped with two UV tubes for wider coverage and higher intensity.
● Holes on each end of the fixture for hanging or mounting the lamp.
● Durable, resistant housing for high usage.

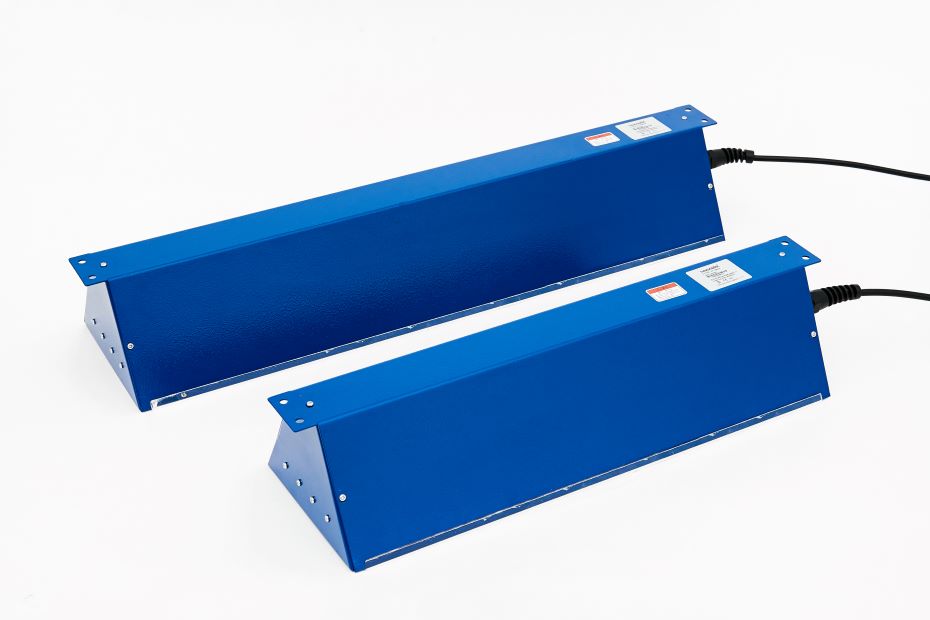

Figure below: laboratory UV Bench Lamp XX-Series designed for intense and steady UV illumination
Technical Data
The XEPU UV Bench Lamp XX-Series offers 6 models of different watts, sizes, and UV wavelengths.
| UV Bench Lamp | Wavelength | UV Tubes | UV Intensity at 10 in (25 cm) | Dimension | Weight |
| XX-15L | 365 nm BLB | 2 x 15 watt UV tubes | 1,650 µW/cm2 | 50 x 15 x 11 cm | 2.5 kg |
| XX-15M | 302 nm | 2 x 15 watt UV tubes | 1,620 µW/cm2 | 50 x 15 x 11 cm | 2.5 kg |
| XX-15S | 254 nm | 2 x 15 watt UV tubes | 1,550 µW/cm2 | 50 x 15 x 11 cm | 2.5 kg |
| XX-20L | 365 nm BLB | 2 x 20 watt UV tubes | 1,950 µW/cm2 | 61 x 15 x 11 cm | 4.5 kg |
| XX-20M | 302 nm | 2 x 20 watt UV tubes | 1,910 µW/cm2 | 61 x 15 x 11 cm | 4.5 kg |
| XX-20S | 254 nm | 2 x 20 watt UV tubes | 1,950 µW/cm2 | 61 x 15 x 11 cm | 4.5 kg |

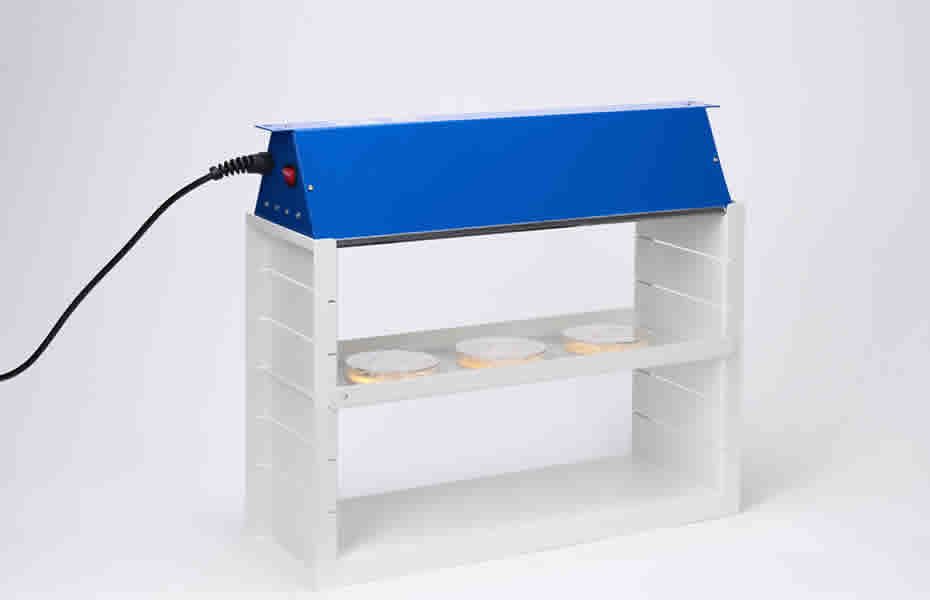

Figure below: UV Bench Lamp XX-Series used in the lab
Standard Package
The standard package of the Laboratory UV Bench Lamp XX-Series includes:
1. The UV Bench Lamp XX-Series
2. A pair of UV protection glasses XP-100
3. User manual
4. Certificate
5. Warranty card
