UV Irradiator XEPU-1235L
UV irradiator XEPU-1235L
The UV irradiator XEPU-1235L, is also known as UV irradiation test cabinet, UV aging test cabinet, or UV weather resistance test cabinet. The UV irradiator XEPU-1235L features high-quality 365nm ultraviolet tubes which simulate the effect of sunlight exposure and can test the reaction of samples under ultraviolet light irradiation. The UV irradiator XEPU-1235L is ideal for multiple UV induced experiments such as drug phototoxicity testing, UV induced skin aging, UV photochemical synthesis reactions, and photogenetic testing.
Applications
The UV irradiator XEPU-1235L can be used for various UV irradiation experiments such as:
● Drug phototoxicity testing
● UV induced skin aging
● UV photochemical synthesis reactions
● Photogenetic testing
Product Features
● The UV Irradiator XEPU-1235L is equipped with high-performance UV tubes which provide intense and uniform 365nm UV-A illumination.
● The UV irradiator XEPU-1235L comes standard with a preset UV irradiation value of 5 J/cm2. The UVA dose of 5 J/cm2 has no cytotoxicity on BALB/c 3T3 cells and is sufficient to trigger chemical induced toxicity reactions.
● The In vitro 3T3 NRU phototoxicity testing requires a UV irradiator to reduce the high cytotoxicity of UVB ultraviolet wavelength, while allowing UVA and visible light to pass through. The UVB energy of the XEPU UV irradiator XEPU-1235L only accounts for 1% of total UV energy, which meets the requirements for filtering UVB in phototoxicity testing and is close to the true UV irradiation effect.
● The UV irradiator XEPU-1235L is equipped with a high-precision ultraviolet sensor, which collects data 5 times per second and is controlled by microprocessor programming.
● The UV irradiator XEPU-1235L offers three operation modes: TIME, ENERGY, and PRESET mode.
● The UV irradiator XEPU-1235L has two built-in cooling fans to control temperature. The temperature inside the UV exposure chamber will not exceed 37 degrees during irradiation.

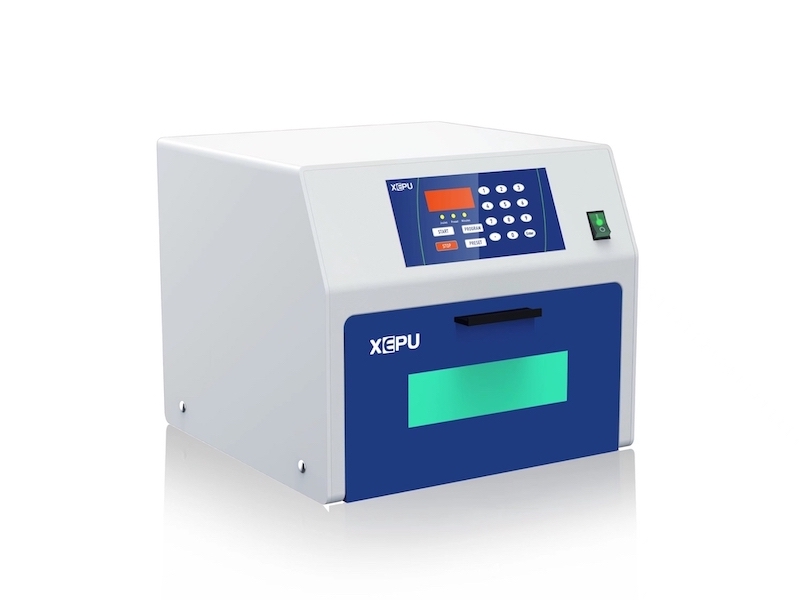

Figure below: UV irradiator XEPU-1235L
Technical Data
Model: XEPU-1235L
Wavelength: 365nm
Bulbs: 3-5 UV tubes (8 Watt)
Mode: Time/Energy/Preset Mode
Time: 00.00-99.59 minutes, or 000.0-599.5 minutes
Energy: 0.000-9.999 Joules, or 0.00-99.99 Joules
Preset: 9 preset values
External dimension (L x W x H): 34 x 35 x 31 cm
Internal dimension (L x W x H): 32 x 26 x 15 cm
Weight: 12 kg
Power: 100-240VAC, 50/60Hz
Startup Time: < 1 sec
Standard Package
The standard package of the UV Irradiator XEPU-1235L includes:
1. The UV Irradiator XEPU-1235L
2. A pair of UV protection glasses XP-100
3. User manual
4. Certificate
5. Warranty card
Figure below: UV irradiator XEPU-1235L
XEPU offers OEM services for UV Irradiators. Please contact us for details.
