Blue Light Transilluminator XEPU-1126B

Short Description:

The Blue Light Transilluminator XEPU-1126B, as an alternative to UV transilluminator, offers highly uniform blue and white light illumination. The Blue Light Transilluminator XEPU-1126B avoids the risk of UV exposure and works well for a wide range of fluorescent imaging applications.


  • Model: XEPU-1126B
  • Wavelength: Blue (470nm) & White (400-760nm)
  • Filter Size: 26 x 21 cm
  • Light Intensity: 10-99% adjustable
  • Dimension: 325 x 322 x 105 mm
  • Weight: 7 kg

Product Details

Product Tags

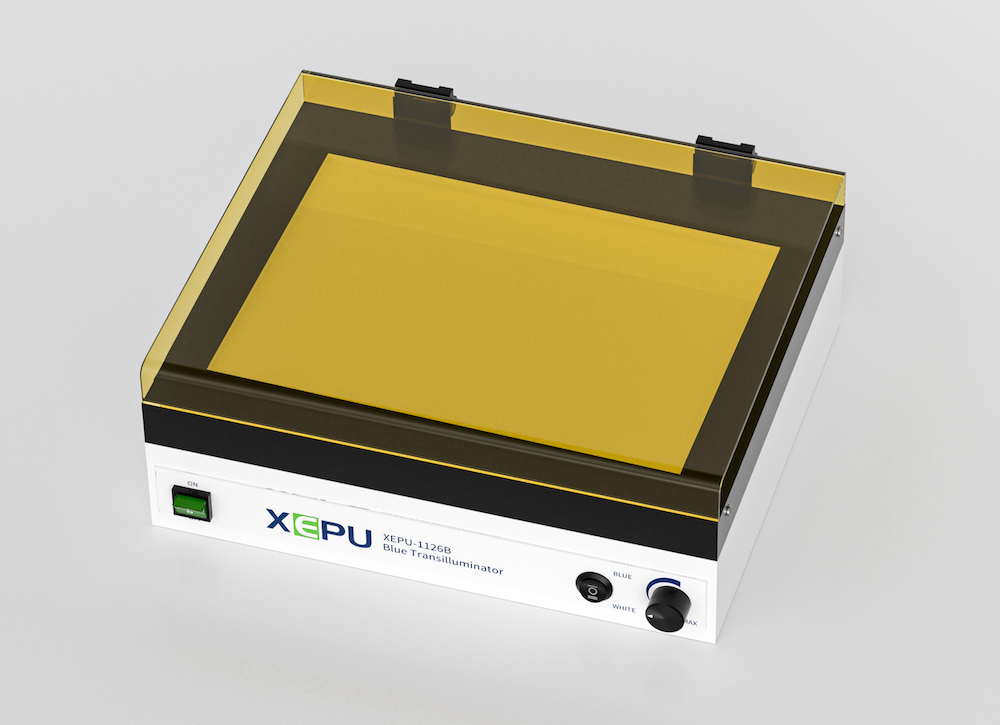

Dual LED Blue Light Transilluminator XEPU-1126B

The Blue Light Transilluminator XEPU-1126B, as an alternative to UV transilluminators, offers highly uniform blue and white light illumination. The Blue Light Transilluminator XEPU-1126B avoids the risk of UV exposure and works well for a wide range of fluorescent imaging applications, such as gel documentation and analysis in gel electrophoresis.

Applications

The Blue Light Transilluminator XEPU-1126B provides two light sources (blue light and white light) which can be easily switched with one button.

● The blue light excitation is excellent for fluorescently stained nucleic acid and protein gels with excitation wavelengths around 470 nm. Example compatible stains include: SYBR Green, GelGreen, SYBR Safe, SYBR Gold, SYPRO Orange, SYPRO Ruby, AttoPhos, Gel Star, Vistra Green, GFP stains, etc.

● The white light illumination can be used for the documentation of all visible colored samples such as silver or Coomassie Blue stained gels as well as for radiographs. The white light excitation is excellent for colorimetric stained protein gels and chromogenically stained membranes.

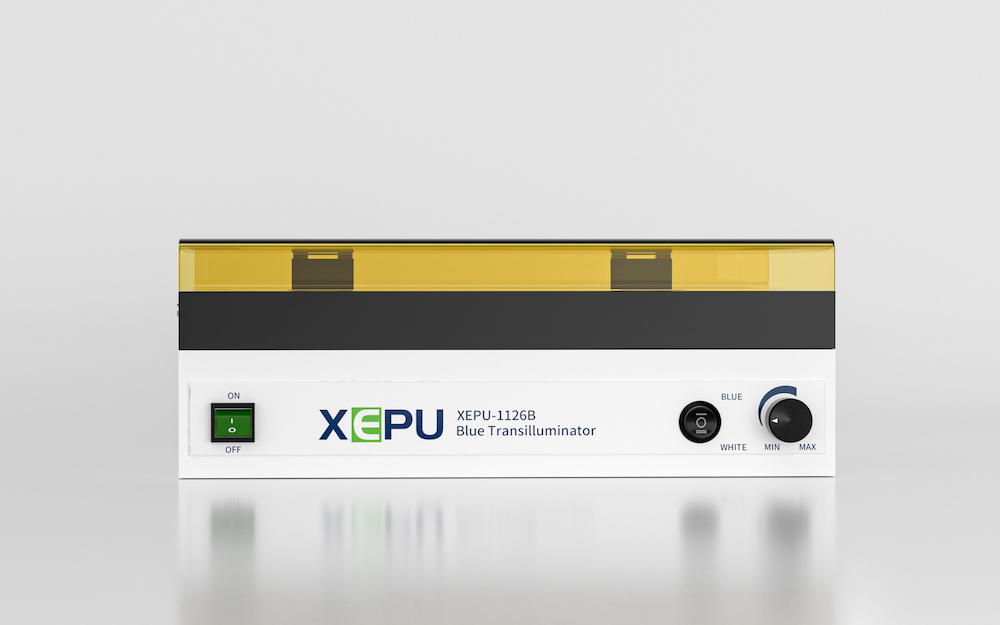

Figure below: dual LED blue/white light transilluminator XEPU-1126B

blue light transilluminator XEPU-1126B

Product Features

● Wide range of applications: analysis and cutting of fluorescently stained nucleic acid and protein gels, colorimetric stained protein gels and chromogenically stained membranes.

● Compatible with many stains: SYBR Green, GelGreen, SYBR Safe, SYBR Gold, SYPRO Orange, SYPRO Ruby, AttoPhos, Gel Star, Vistra Green, GFP stains, etc.

● Highly uniform illumination: edge-to-edge, bright and consistent illumination allows high-quality images for publication.

● Dual light sources: easily switch between blue and white light using one button.

● Blue light instead of harmful UV light: no risk of sample damage during illumination.

● Adjustable light intensity from 10% to 99%: accommodate samples with different concentration.

● High-performance LED: lifespan greater than 50,000 hours.

● Anti-slip design: add anti-slip pads at the bottom to ensure stability when cutting gel.

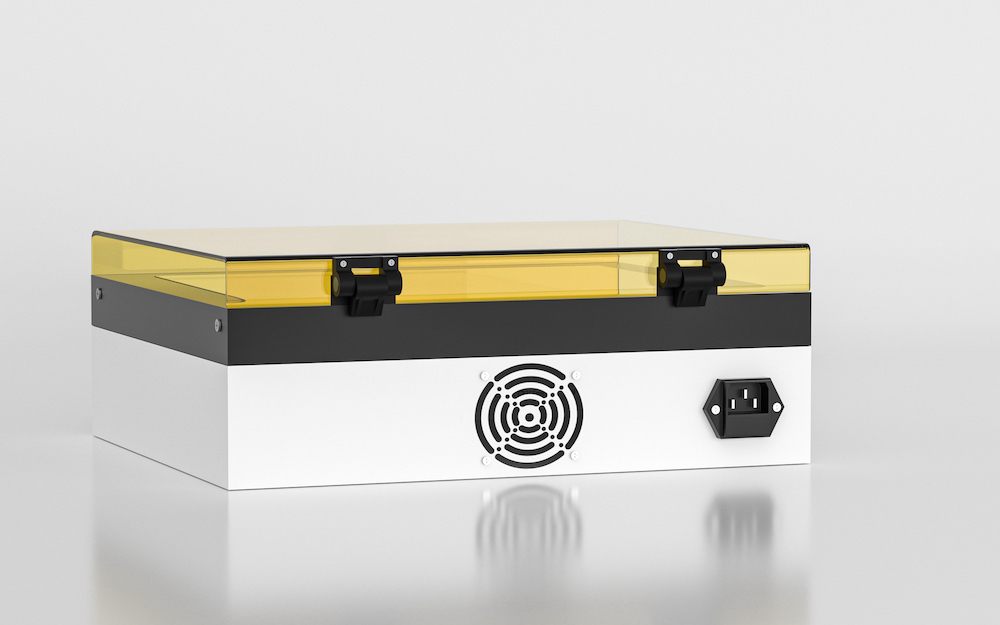

Figure below: dual LED blue/white light transilluminator XEPU-1126B

blue light transilluminator XEPU-1126B

Blue Transilluminators Selection Guide

XEPU offers UV transilluminators, blue light Transilluminators, and white light transilluminators.

TransilluminatorModelLight SourceFilter SizeIntensity
Blue Light TransilluminatorXEPU-1126B

24 blue light LED (470nm)

20 white light LED (400-760nm)

26 x 21 cm10-99% adjustable
White Light TransilluminatorXEPU-1126W24 white light LED (400-760nm)26 x 21 cm10-99% adjustable

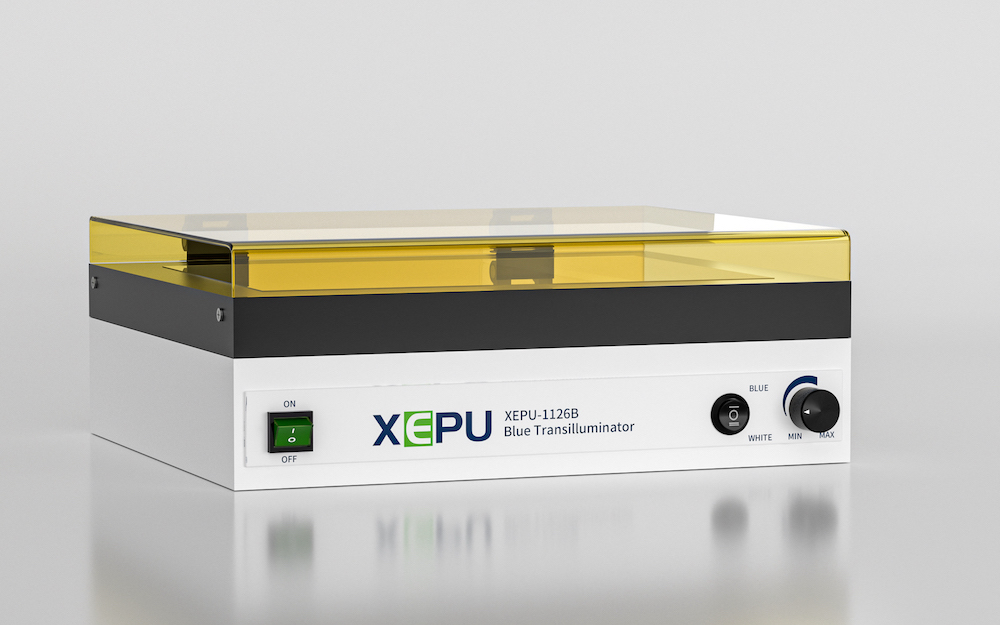

Figure below: dual LED blue/white light transilluminator XEPU-1126B

blue light transilluminator XEPU-1126B

Standard Package

The standard package of Blue Light Transilluminator XEPU-1126B includes:

1. Blue Light Transilluminator XEPU-1126B

2. User manual

3. Certificate

4. Warranty card

Applications of Dual LED Blue Light Transilluminator XEPU-1126B

Visualize SYBR Green stained DNA

Visualize SYPRO Orange protein gel stain


XEPU offers OEM services for blue light transilluminators and white light transilluminators. Please contact us for details.
