UV Crosslinker 302nm XEPU-1208M
302nm UV Crosslinker XEPU-1208M
The 302nm UV Crosslinker XEPU-1208M is a versatile, high-quality, microprocessor controlled UV irradiation system. Specifically designed for mutation biology, membrane crosslinking, bimolecular crosslinking, microorganisms inactivation, polymer curing, photostability verification, etc.
Applications
The XEPU UV Crosslinkers are applicable for a variety of applications:
● Mutation biology (UV-induced mutations, survival assays, stress assays)
● Membrane crosslinking (Northern/Southern blotting, EMSA)
● Bimolecular crosslinking (CLIP-seq, iCLIP-seq, PAR-CLIP-seq, pBpa, sulfo-SDA, psoralen)
● Microorganisms inactivation (e.g. bacteria, fungus, virus)
● Polymer curing (e.g. hydrogels, methyacrylate resins)
● Photostability verification

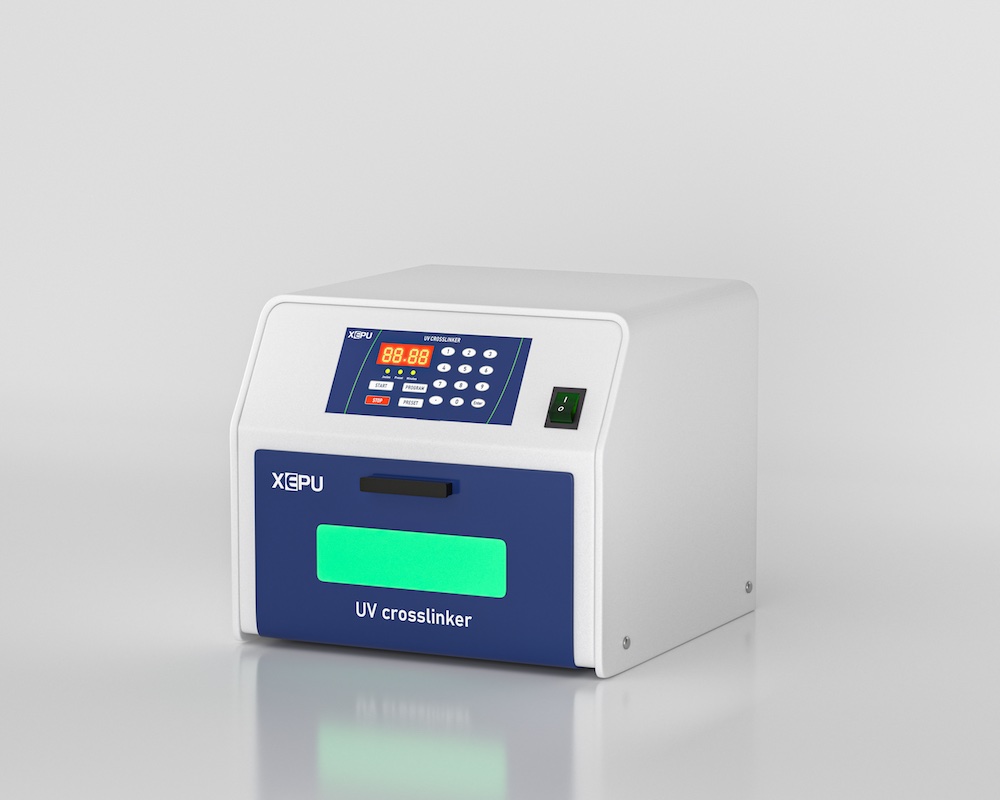

Figure below: 302nm UV Crosslinker XEPU-1208M
Product Features
● The UV Crosslinker XEPU-1208M is a microprocessor-controlled, highly efficient UV irradiation system dedicated to nucleic acid linking to membranes for Southern, Northern, Dot and Slot Blot applications.
● With precise control of UV irradiation energy and time, the XEPU UV Crosslinkers assure reproducible dosing irrespective of space and time.
● The XEPU UV Crosslinkers offer three operation modes: ENERGY, TIME, and PRESET mode.
● The XEPU UV Crosslinkers are equipped with 6 high-performance UV tubes and reflective aluminum UV exposure chamber, providing ultra uniform UV illumination.
● The UV exposure chamber is designed to be large enough to hold multiple samples for simultaneous irradiation, allowing parallel sample analysis and increasing efficiency of experiments.
● Safety interlocks to prevent users from accidental UV exposure.

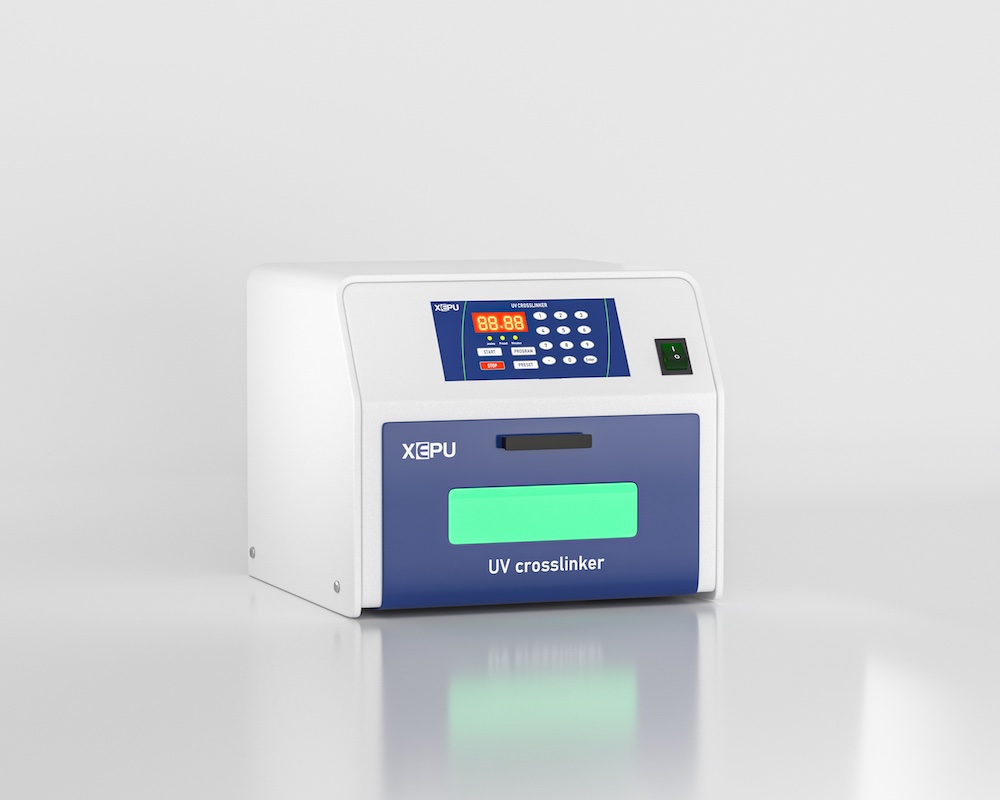

Figure below: 302nm UV Crosslinker XEPU-1208M
Technical Data
Model: XEPU-1208M
Wavelength: 302nm
Bulbs: 6 x 8 Watt UV tubes
Mode: Time/Energy/Preset Mode
Time: 00.00-99.59 minutes, or 000.0-599.5 minutes
Energy: 0.000-9.999 Joules, or 0.00-99.99 Joules
Preset: 9 preset values
External Dim (L x W x H): 34 x 35 x 31 cm
Internal Dim (L x W x H): 32 x 26 x 15 cm
Weight: 10 kg
Power: 100-240VAC, 50/60Hz
Startup Time: < 1 sec

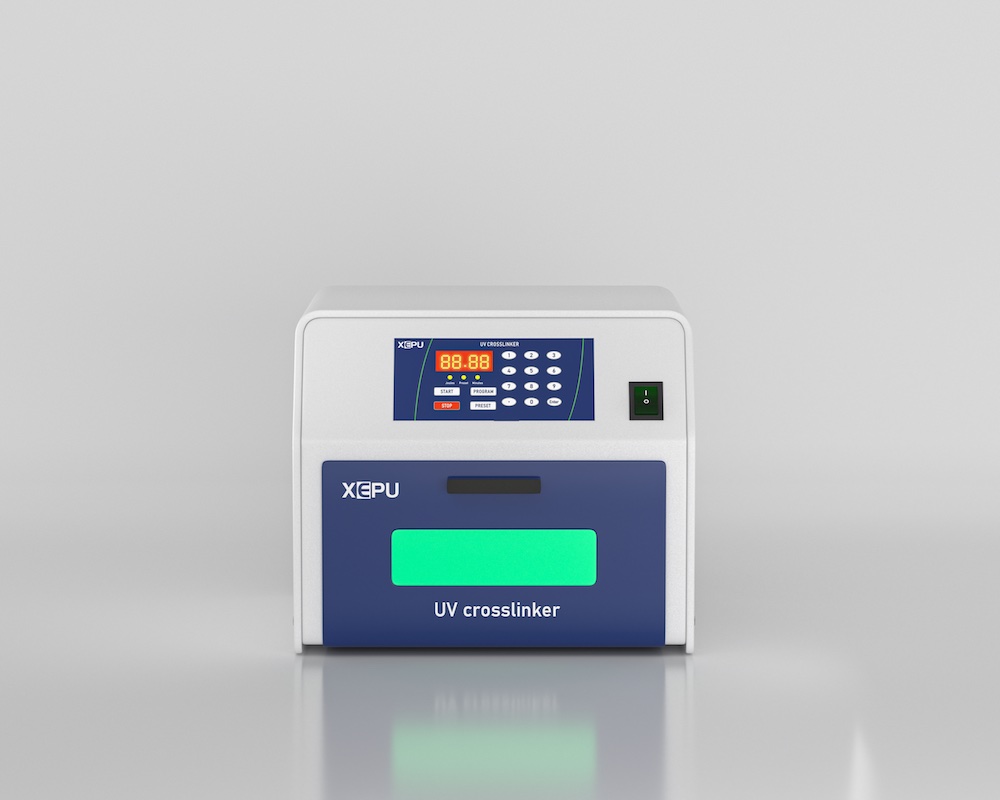

Figure below: 302nm UV Crosslinker XEPU-1208M
UV Crosslinkers Selection Guide
The XEPU UV Crosslinkers are available in six different combinations of wavelengths and wattages.
The UV Crosslinkers XEPU-1208 (M/L) are equipped with 6 x 8 Watt UV tubes.
| UV Crosslinker | Model | Wavelength | UV Tubes | External Dim | Internal Dim | Weight |
| 8W 254nm UV Crosslinker | XEPU-1208 | 254nm | 6 x 8 Watt | 34 x 35 x 31 cm | 32 x 26 x 15 cm | 10 kg |
| 8W 302nm UV Crosslinker | XEPU-1208M | 302nm | 6 x 8 Watt | 34 x 35 x 31 cm | 32 x 26 x 15 cm | 10 kg |
| 8W 365nm UV Crosslinker | XEPU-1208L | 365nm | 6 x 8 Watt | 34 x 35 x 31 cm | 32 x 26 x 15 cm | 10 kg |
The UV Crosslinkers XEPU-1215 (M/L) are equipped with 6 x 15 Watt UV tubes, providing higher UV intensity and larger inner space for holding more samples.
| UV Crosslinker | Model | Wavelength | UV Tubes | External Dim | Internal Dim | Weight |
| 15W 254nm UV Crosslinker | XEPU-1215 | 254nm | 6 x 15 Watt | 55 x 36 x 30 cm | 44 x 34 x 15 cm | 12 kg |
| 15W 302nm UV Crosslinker | XEPU-1215M | 302nm | 6 x 15 Watt | 55 x 36 x 30 cm | 44 x 34 x 15 cm | 12 kg |
| 15W 365nm UV Crosslinker | XEPU-1215L | 365nm | 6 x 15 Watt | 55 x 36 x 30 cm | 44 x 34 x 15 cm | 12 kg |
Standard Package
The standard package of the 302nm UV Crosslinker XEPU-1208M includes:
1. The 302nm UV Crosslinker XEPU-1208M
2. A pair of UV protection glasses XP-100
3. User manual
4. Certificate
5. Warranty card
Figure below: 302nm UV Crosslinker XEPU-1208M
We offer OEM services for 302nm UV Crosslinkers. Please contact us for details.
