UV Transilluminator 302nm XEPU-1126M

Short Description:

The 302nm UV Transilluminators XEPU-1126M offers highly uniform and consistent UV illumination in a compact package. Featuring 8 high-performance 302nm UV tubes, a high-grade filter, adjustable intensity and a space-saving design, the 302nm UV Transilluminator XEPU-1126M is an ideal tool in your molecular biology lab!


  • Model: XEPU-1126M
  • Wavelength: 302nm
  • Filter Size: 26 x 21 cm
  • Light Intensity: 10-99% adjustable
  • Dimension: 325 x 322 x 105 mm
  • Weight: 7 kg

Product Details

Product Tags

302nm UV Transilluminators XEPU-1126M

The 302nm UV Transilluminators XEPU-1126M offers highly uniform and consistent UV illumination in a compact package. Featuring 8 high-performance 302nm UV tubes, a high-grade filter, adjustable intensity and a space-saving design, the 302nm UV Transilluminator XEPU-1126M is an ideal tool in your molecular biology lab!

Applications

The XEPU UV transilluminators can be used for a wide range of genomic and proteomic applications:

● Analyze DNA or RNA that has been separated by electrophoresis through an agarose gel

● View samples to size a PCR product

● Purify DNA segments after a restriction enzyme digest

● Quantify DNA

● Verify RNA integrity after extraction

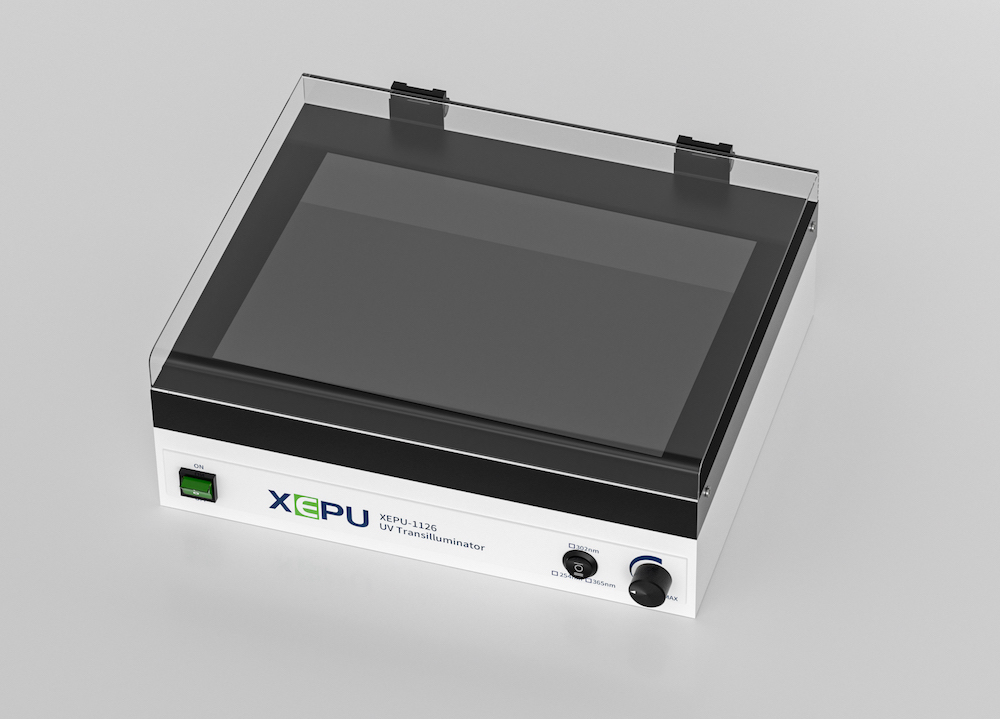

Figure below: 302nm UV Transilluminators XEPU-1126M

302nm UV Transilluminators XEPU-1126M

Product Features

● Wide range of genomic and proteomic applications: e.g. DNA and protein gel documentation and analysis.

● Uniform and intense 302nm UV illumination: high contrast ensure high quality images for publication.

● Adjustable light intensity from 10% to 99%: accomodate samples with different concentration.

● A high-grade filter up to 26 x 21 cm: multiple gels may be placed on the surface with assurance of uniformity for each gel.

● A clear UV blocking cover: hinged and adjustable to varying heights for a greater ease of use.

● Temperature control design: a built-in cooling fan to keep surface temperature low and protect samples from heat.

● A compact, benchtop size: fit perfectly in any busy laboratory

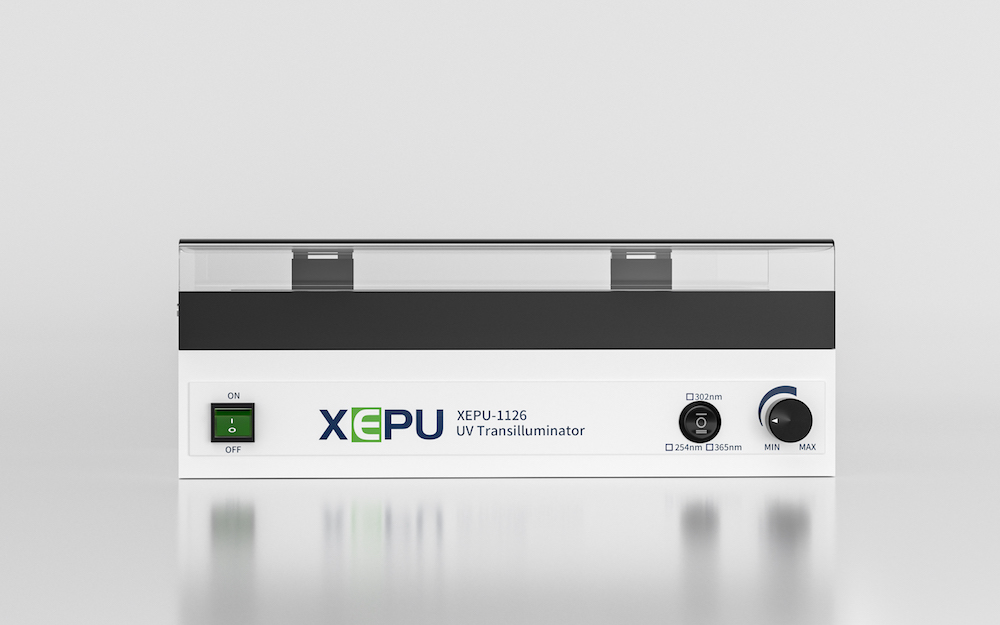

Figure below: 302nm UV Transilluminators XEPU-1126M

302nm UV Transilluminators XEPU-1126M

UV Transilluminators Selection Guide

The XEPU UV Transilluminators are available in six different variations: single UV (365nm, 302nm, or 254nm) and 2UV (302 and 365 nm, 254 and 365 nm, or 254 and 302 nm).

Choose the single UV transilluminators if you require high-intensity excitation of one wavelength.

Choose the 2UV transilluminators if you want to cover more applications.

UV TransilluminatorModelLight SourceFilter SizeIntensity
365nm UV TransilluminatorXEPU-1126L8 x 8 Watt 365nm26 x 21 cm10-99% adjustable
302nm UV TransilluminatorXEPU-1126M8 x 8 Watt 302nm26 x 21 cm10-99% adjustable
254nm UV TransilluminatorXEPU-1126S8 x 8 Watt 254nm26 x 21 cm10-99% adjustable
2UV TransilluminatorXEPU-1126ML

4 x 8 Watt 302nm

4 x 8 Watt 365nm

26 x 21 cm10-99% adjustable
2UV TransilluminatorXEPU-1126SL

4 x 8 Watt 254nm

4 x 8 Watt 365nm

26 x 21 cm10-99% adjustable
2UV TransilluminatorXEPU-1126SM

4 x 8 Watt 254nm

4 x 8 Watt 302nm

26 x 21 cm10-99% adjustable

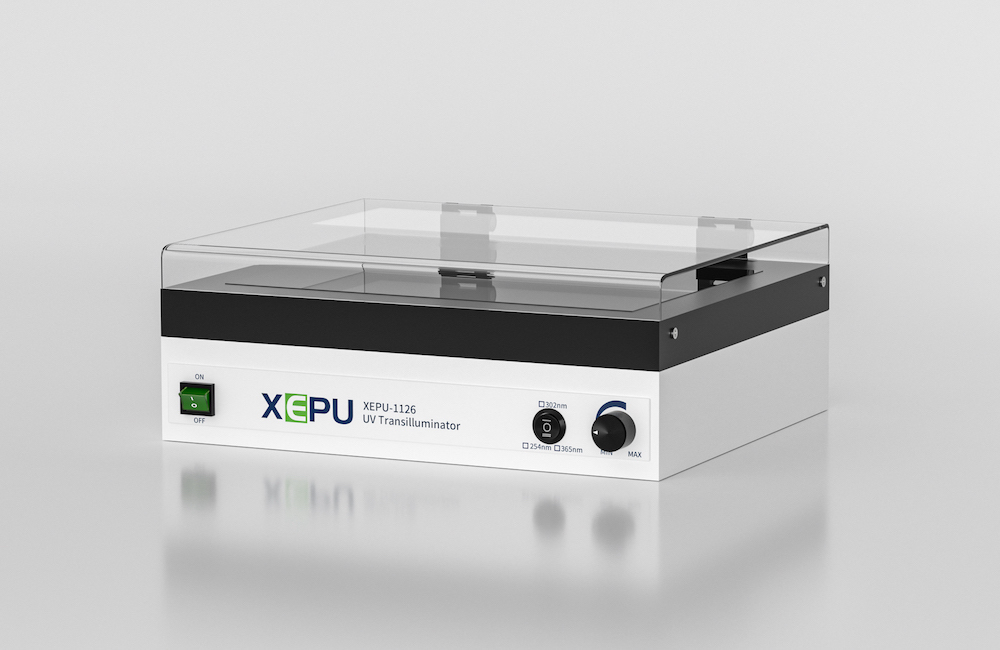

Figure below: 302nm UV Transilluminators XEPU-1126M

302nm UV Transilluminators XEPU-1126M

Standard Package

The standard package of 302nm UV Transilluminator XEPU-1126M includes:

1. The 302nm UV Transilluminator XEPU-1126M

2. A pair of UV protection glasses XP-100

3. User manual

4. Certificate

5. Warranty card


XEPU offers OEM services for 302nm UV Transilluminators. Please contact us for details.
