NDT 365nm UV LED Headlamp XEPU-1601

The NDT 365nm UV LED Headlamp XEPU-1601, is a palm-sized, portable, versatile, hands-free light source featuring 1 ultra-high intensity UV-A LED for non-destructive testing (NDT) applications. The NDT 365nm UV LED Headlamp XEPU-1601 is equipped with a UV-A pass filter to minimize visible light and increase UV light. The lamp contains an adjustable strap so that it can be worn on a helmet or directly on an operator's head for hands-free operation and an adjustment bracket enabling the operator to gain full control over the direction of light.

Applications

The NDT 365nm UV LED Headlamp XEPU-1601 can be used in a number of detection applications.

● Non-destructive testing: fluorescent leak detection, fluorescent magnetic particle inspection

● Detect contamination of electronic components and LCD panels

● Detect leakage of hydraulic equipment, oil tanks and piping

● Detect impurities and defects in systems that require degreasing

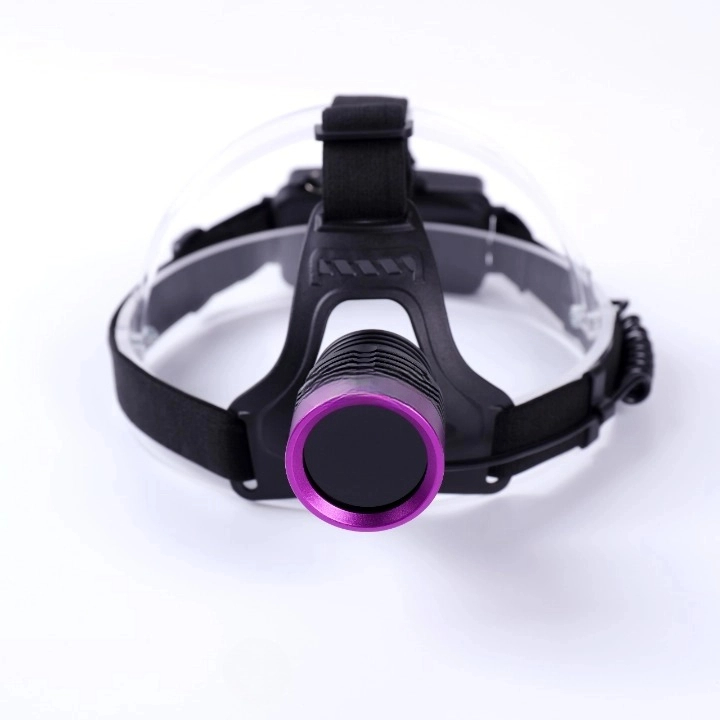

Figure below: NDT 365nm UV LED Headlamp XEPU-1601 designed for hands-free detection

Product Features

● Nominal steady-state UV-A intensity of 10,000 μW/cm² at 38 cm

● Lightweight and compact: can be worn on a helmet or directly on an operator's head for hands-free operation

● Adjustment bracket and adjustable headband for full control over the direction of light

● Long life LED for years of use

● Instant-on operation

● Dust tight and water resistant housing for high usage

● Fanless and cool running

Technical Data

Wavelength: 360-370nm

Light source: 1 x 5 Watt UV-A LED

LED lifespan: 30,000 hours

UV-A intensity: 10,000 μW/cm² at 38 cm

Illuminated area: diameter 50 mm at 38 cm

Power supply: two rechargeable batteries

Continuous working time: 3.5 hours

Dimension: 40 x 38 mm

Weight: 200 g

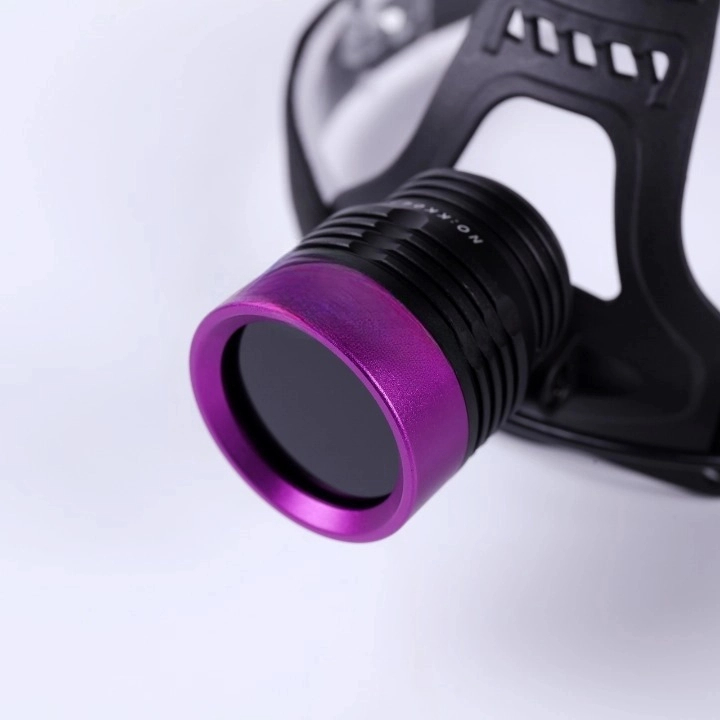

Figure below: NDT 365nm UV LED Headlamp XEPU-1601 light head

Standard Package

The standard package of the NDT 365nm UV LED Headlamp XEPU-1601 includes:

1. NDT 365nm UV LED Headlamp XEPU-1601

2. A pair of UV protection glasses XP-100

3. User manual

4. Certificate

5. Warranty card
